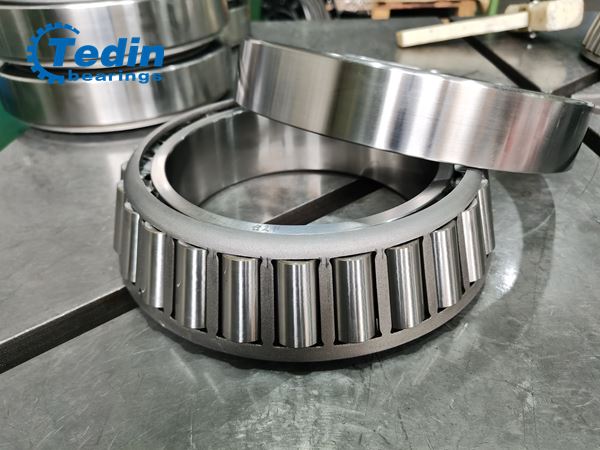

Hoge precisie kegellagers
Tedin is een toonaangevende fabrikant van zeer nauwkeurige kegellagers. We bieden een verscheidenheid aan constructies voor conische rollagers, zoals eenrijige, dubbele rij en vierrijige in zowel inch- als metrische maten.
Lagertype: kegellager met één rij;
Lagercode: JM624649/JM624610
Precisiekwaliteit: ISO P2
Binnendiameter: 120mm
Buitendiameter: 180 mm
Hoogte: 36 mm
Gewicht: 3,01 kg
Beoordelingsbelasting: Cr= 200kN, Cor=347kN
Slinger: 0.005mm
Materiaal: koolstofstaal GCr15 (100Cr6)
Kooi: geperst staal
Rotatie Nauwkeurigheid Test Video:
Het voordeel van de zeer nauwkeurige kegelrollagers van Tedin:
1. Lange levensduur
2. Stabiliteitsprestaties:
3. Hoge nauwkeurigheid: Grade P5, P4, P2
4. Alle rollende elementen -taps toelopende rollen, zijn door onszelf geproduceerd,met logaritmische profilering, welkeverbeterde de levensduur en prestaties van het lager;.
5. De loopbanen van de binnenring en buitenring waren super afgewerkt, wat de trekspanning gevormd door het slijpproces kan veranderen in drukspanning, waardoor een ideaal drukspanningsoppervlak wordt verkregen. Dit werkoppervlak kan de trillings- en geluidsamplitude van het lager effectief verminderen en kan de levensduur en de vermoeidheidssterkte van het lager verbeteren.
Toepassingen:
draaibanken
Bewerkingscentra
Film- en zelfklevende coatingsystemen
Afdrukapparatuur
Draaitafeltoepassingen
Landbouw-, bouw- en mijnbouwapparatuur, assystemen, versnellingsbak, motormotoren, verloopstukken.
Onze service:
Technische dienst vóór verkoop: we bieden technische analyses van lagertypes, constructies, afmetingen, draagvermogen, slagvastheid, rotatienauwkeurigheid, speling, enz.
Kwaliteitsgarantie: we bieden 12 maanden kwaliteitsverzekering voor onze producten. De keuringsdocumenten worden samen aan onze klant geleverd: materiaalcertificaat, warmtebehandeling, volledig keuringsrapport, enz.
Kleine bestelling acceptabel voor ons.
Populaire tags: Hoge precisie kegellager, China, fabrikanten, fabriek, aangepast, te koop
Lagercode: | d | D | T | Cr | C0r | Vet | Olie | Gewicht |
mm | mm | mm | kN | r/min | kg | |||
KH242649/KH242610 | 206.375 | 336.55 | 98.425 | 965 | 1400 | 850 | 1200 | 33 |
93825/93125 | 209.55 | 317.5 | 63.5 | 605 | 1130 | 850 | 1200 | 16.6 |
K93825/K93125 | 209.55 | 317.5 | 63.5 | 605 | 1130 | 850 | 1200 | 16.6 |
LM742749/LM742710 | 215.9 | 285.75 | 46.038 | 375 | 840 | 1000 | 1500 | 8 |
LM742747/LM742710 | 216.408 | 285.75 | 46.038 | 375 | 840 | 1000 | 1500 | 7.95 |
LM742747A/LM742710 | 216.713 | 285.75 | 46.038 | 375 | 840 | 1000 | 1500 | 7.95 |
KM244249/KM244210 | 220.662 | 314.325 | 61.912 | 620 | 1220 | 1000 | 1500 | 14.9 |
KM249732/KM249710-1 | 228.6 | 358.775 | 71.438 | 750 | 1500 | 950 | 1300 | 27.2 |
HH949549/HH949510 | 228.6 | 488.95 | 123.825 | 1820 | 2490 | 750 | 1000 | 101 |
LM245846/LM245810 | 230.188 | 317.5 | 47.625 | 520 | 985 | 900 | 1200 | 10.6 |
544091/544118A | 231.775 | 300.038 | 33.338 | 212 | 420 | 950 | 1300 | 5.4 |
LM245848/LM245810 | 231.775 | 317.5 | 47.625 | 520 | 985 | 900 | 1200 | 10.6 |
KM246942/KM246910 | 231.775 | 336.55 | 65.088 | 640 | 1360 | 850 | 1200 | 18.5 |
KH247549/KH247510 | 234.95 | 384.175 | 112.712 | 1360 | 2540 | 750 | 1000 | 50 |
KM246949/KM246910 | 237.33 | 336.55 | 65.088 | 640 | 1360 | 850 | 1200 | 17.5 |
KEE923095/K923175 | 241.3 | 444.5 | 101.6 | 1340 | 2000 | 750 | 1000 | 65.9 |
KEE390095/K390200 | 241.3 | 508 | 117.475 | 1340 | 2060 | 670 | 900 | 96.4 |
KM348449/KM348410 | 247.65 | 346.075 | 63.5 | 670 | 1310 | 850 | 1200 | 17.4 |
HH249949/HH249910 | 247.65 | 406.4 | 115.888 | 1690 | 3200 | 750 | 1000 | 58 |
M349547SH/M349510SH | 255.6 | 342.9 | 57.15 | 665 | 1330 | 850 | 1200 | 14.4 |
KM349549/KM349510 | 257.175 | 342.9 | 57.15 | 725 | 880 | 850 | 1200 | 14 |
M249747SH/M249710SH | 257.175 | 358.775 | 71.438 | 750 | 1520 | 850 | 1200 | 21.7 |
HM252348/HM252310 | 260.35 | 422.275 | 86.121 | 1100 | 1800 | 900 | 1300 | 42.8 |
38880/38820 | 263.525 | 325.438 | 28.575 | 1280 | 1790 | 1000 | 1500 | 54.2 |
KLM451349/KLM451310 | 266.7 | 355.6 | 57.15 | 715 | 800 | 850 | 1200 | 15.1 |
KEE275105/K275155 | 266.7 | 393.7 | 73.817 | 770 | 1460 | 750 | 1000 | 27.8 |
KH852849/KH852810 | 266.7 | 444.5 | 120.65 | 1610 | 3050 | 670 | 900 | 73.1 |
KEE275108/K275155 | 273.05 | 393.7 | 73.817 | 770 | 1460 | 750 | 1000 | 26.3 |
M255449/M255410 | 288.925 | 406.4 | 77.788 | 1250 | 1900 | 670 | 900 | 30.5 |
L555249/L555210 | 292.1 | 374.65 | 47.625 | 1080 | 1590 | 780 | 1050 | 12.2 |
KL357049/KL357010 | 304.8 | 393.7 | 50.8 | 580 | 1210 | 670 | 900 | 14.6 |
LM757049/LM757010 | 304.8 | 406.4 | 63.5 | 2200 | 2800 | 670 | 900 | 21.2 |
HM259048/HM259010 | 317.5 | 447.675 | 85.725 | 960 | 2330 | 670 | 900 | 41.3 |
KL860049/KL860010 | 330.2 | 415.925 | 47.625 | 475 | 1140 | 670 | 900 | 14.3 |
EE526130/526190 | 330.2 | 482.6 | 85.725 | 1200 | 2480 | 600 | 830 | 49.2 |
HM261049/HM261010 | 333.375 | 469.9 | 90.488 | 1320 | 2820 | 600 | 830 | 47.6 |
LM361649A/LM361610 | 343.154 | 450.85 | 66.675 | 930 | 2180 | 650 | 850 | 28.3 |
HM262749/HM262710 | 346.075 | 488.95 | 95.25 | 845 | 1180 | 600 | 830 | 55.8 |
306/355.6-1 | 355.6 | 482.6 | 60.32 | 565 | 1180 | 600 | 830 | 26.6 |
H961649/H961610 | 371.5 | 622.3 | 147.638 | 2300 | 3600 | 420 | 580 | 180 |
KLM565946/KLM565910 | 377.825 | 522.288 | 85.725 | 1170 | 2580 | 670 | 900 | 51.9 |
306/380.1 | 380.1 | 480 | 50 | 590 | 1490 | 560 | 750 | 20.8 |
L865547/L865512 | 381 | 479.425 | 49.212 | 590 | 1490 | 560 | 750 | 20.4 |
KLM565949/KLM565910 | 381 | 522.288 | 85.725 | 1170 | 2580 | 650 | 870 | 51.2 |
HM266449/HM266410 | 384.175 | 546.1 | 104.775 | 1850 | 4150 | 530 | 700 | 77.6 |
LL566848/LL566810 | 403.225 | 460.375 | 28.575 | 240 | 760 | 560 | 750 | 6.73 |
KEE234160/K234215 | 406.4 | 546.1 | 76.2 | 840 | 1830 | 630 | 850 | 41.8 |
LM567949/LM567910 | 406.4 | 549.275 | 85.725 | 1350 | 3000 | 600 | 800 | 54 |
EE285160/EE285226 | 406.4 | 574.625 | 76.2 | 920 | 2030 | 500 | 650 | 54.2 |
H969249/H969210 | 406.4 | 762 | 180.975 | 3650 | 6050 | 350 | 480 | 322 |
M268749/M268710 | 415.925 | 590.55 | 114.3 | 1810 | 4030 | 480 | 650 | 96.6 |
EE241693/242375 | 430.212 | 603.25 | 76.2 | 1050 | 2300 | 480 | 650 | 58.6 |
M270749/M270710 | 447.625 | 635 | 120.65 | 2300 | 5450 | 430 | 560 | 121 |
L570649/L570610 | 457.2 | 573.088 | 74.612 | 1100 | 2980 | 480 | 630 | 43.8 |
LM770949/LM770910 | 457.2 | 603.25 | 85.725 | 1420 | 3390 | 450 | 600 | 62 |
LM272235/LM272210 | 457.2 | 615.95 | 85.725 | 1450 | 3750 | 420 | 580 | 73.2 |
EE737181/737260 | 457.2 | 660.4 | 91.28 | 1750 | 3600 | 420 | 580 | 91.5 |
EE243190/243250 | 482.6 | 634.873 | 80.962 | 1430 | 3600 | 420 | 580 | 60.8 |
LM772748/LM772710 | 488.95 | 634.873 | 84.138 | 1420 | 3600 | 420 | 580 | 64.5 |
EE243196/243250/HE | 498.475 | 634.873 | 80.962 | 1340 | 2950 | 420 | 580 | 58.3 |
EE982051/982900 | 520.7 | 736.6 | 88.9 | 1630 | 3350 | 380 | 500 | 101 |
M276449/M276410 | 536.575 | 761.873 | 146.05 | 3300 | 7950 | 360 | 480 | 202 |
306/536X4 | 536.575 | 820 | 152 | 3850 | 7750 | 340 | 450 | 273 |
LL575349/LL575310 | 539.75 | 635 | 50.8 | 780 | 2150 | 400 | 530 | 27.2 |
EE649239/649310 | 607.72 | 787.4 | 93.662 | 2200 | 2800 | 340 | 450 | 108 |
EE649240/649310 | 609.6 | 787.4 | 93.662 | 2120 | 5250 | 340 | 450 | 108 |
80780/80720 | 635 | 736.6 | 57.15 | 855 | 2640 | 350 | 470 | 37.3 |
L281147/L281110 | 660.4 | 812.8 | 95.25 | 1920 | 5550 | 310 | 420 | 106 |
306/660.4 | 660.4 | 939.8 | 136.525 | 3700 | 8100 | 260 | 360 | 288 |
306/660.4-1 | 660.4 | 1000 | 152.4 | 4300 | 9450 | 240 | 340 | 411 |
LM281849/LM281810 | 679.45 | 901.7 | 142.875 | 3550 | 8900 | 260 | 360 | 243 |
306/682 X4-2 | 682.625 | 965.2 | 185.738 | 5050 | 12480 | 240 | 340 | 419 |
EE655270/655345 | 685.8 | 876.3 | 93.662 | 2100 | 4950 | 280 | 380 | 399 |
306/711.2 | 711.2 | 939.8 | 120.65 | 2600 | 6150 | 220 | 320 | 207 |
EE755285/755360 | 723.9 | 914.4 | 84.137 | 2000 | 4850 | 260 | 360 | 116 |
LM283649/LM283610 | 749.3 | 990.6 | 159.5 | 4500 | 11800 | 220 | 320 | 331 |
LL483448/LL483418 | 759.925 | 889 | 69.85 | 1210 | 3750 | 260 | 360 | 67.2 |
L183448/L183410 | 760 | 889 | 88.9 | 2200 | 3200 | 260 | 360 | 93.5 |
L183449/L183410 | 762 | 889 | 88.9 | 2200 | 3200 | 260 | 360 | 91.9 |
EE752305/752380 | 774.7 | 965.2 | 93.662 | 1920 | 4850 | 220 | 320 | 130 |
LL584449/LL584410 | 801.688 | 914.4 | 58.738 | 1050 | 3500 | 240 | 340 | 53.6 |
EE763330/763410 | 838.2 | 1041.4 | 93.662 | 1850 | 4750 | 200 | 300 | 161 |
EE157337/157430 | 857.25 | 1092.2 | 120.65 | 2790 | 7300 | 190 | 280 | 244 |
JL286948H/JL286910 | 928 | 1060 | 92 | 2120 | 7450 | 190 | 280 | 117 |
JL286949H/JL286910 | 930 | 1060 | 92 | 2120 | 7450 | 190 | 280 | 115 |
LL687949/LL687910 | 977.9 | 1130.3 | 66.675 | 1430 | 4300 | 170 | 240 | 101 |
EE168400/168500 | 1016 | 1270 | 101.6 | 2700 | 7450 | 160 | 230 | 276 |
